Compact Underfloor

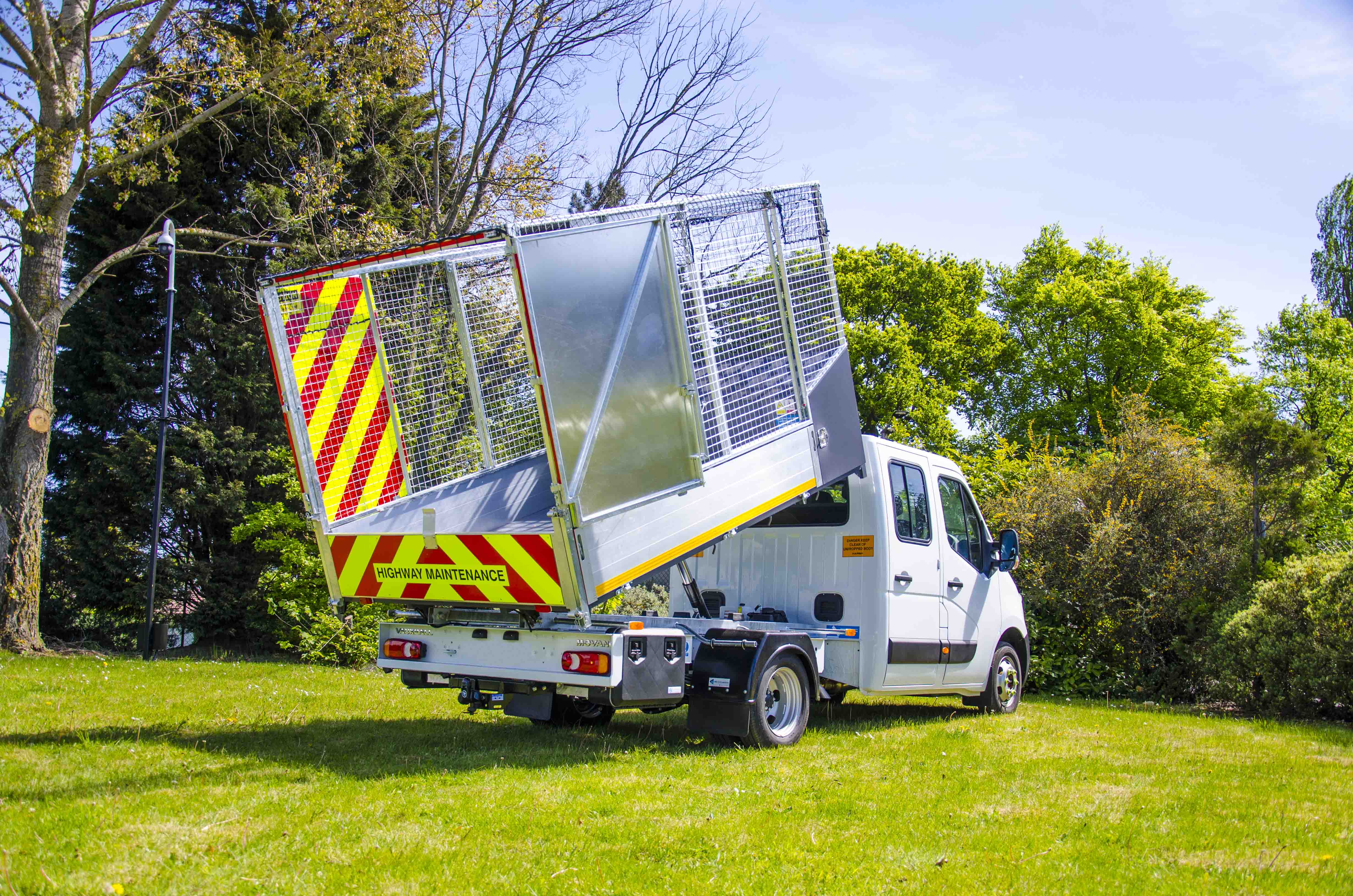

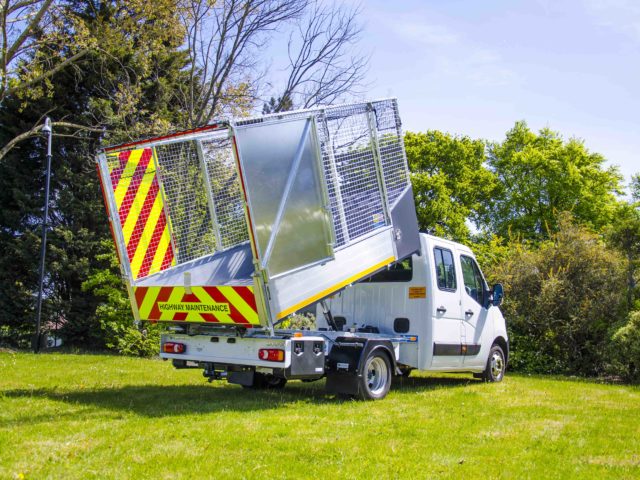

HARSH compact underfloor cylinders or ‘pot ram’ tipping gears offer an economical solution for underbody tipping. Ideal for tipper grabs and crane vehicles ranging from 3.5 tonne to 32 tonne trucks.
Lightweight and ultra-compact, HARSH Compact Underfloor (CU) tipping gears or ‘pot ram’ tipping gears are easy to install in any chassis, no matter what the layout of other components. Depending on the mounting position, high tipping angles are easy to achieve.
Our 3.5t range is powerpack operated and offers an economical solution for small multi-purpose tippers. The 7.5t models are either powerpack or PTO/pump driven and are fully chromed for maintenance-free operation.
HARSH Compact Underfloor tipping gears are single acting – powering up and gravity down.
Lightweight and ultra-compact, HARSH Compact Underfloor (CU) tipping gears or ‘pot ram’ tipping gears are easy to install in any chassis, no matter what the layout of other components. Depending on the mounting position, high tipping angles are easy to achieve.
In service, the Compact Underfloor tipping gears’ high-pressure operating system matches perfectly the hydraulics of the crane, making operation of the whole vehicle fast and efficient.
With chrome-plated cylinders, HARSH Compact Underfloor tipping gears have high-level protection in any working environment, and especially where grit and salt are involved. Best of all, HARSH Compact Underfloor is as maintenance-free as any tipping gear can be.
Our 12t to 18t range is PTO/pump operated. HARSH Compact Underfloor tipping gears are single acting – powering up and gravity down.
Lightweight and ultra-compact, HARSH Compact Underfloor (CU) tipping gears or ‘pot ram’ tipping gears are easy to install in any chassis, no matter what the layout of other components. Depending on the mounting position, high tipping angles are easy to achieve.
In service, HARSH pot ram tipping gears’ high-pressure operating system matches perfectly the hydraulics of the crane, making operation of the whole vehicle fast and efficient.
With chrome-plated cylinders, HARSH Compact Underfloor tipping gears have high-level protection in any working environment, and especially where grit and salt are involved. Best of all, HARSH Compact Underfloor is as maintenance-free as any tipping gear can be.
Our 26t to 32t range is PTO/pump operated. HARSH Compact Underfloor tipping gears are single acting – powering up and gravity down.

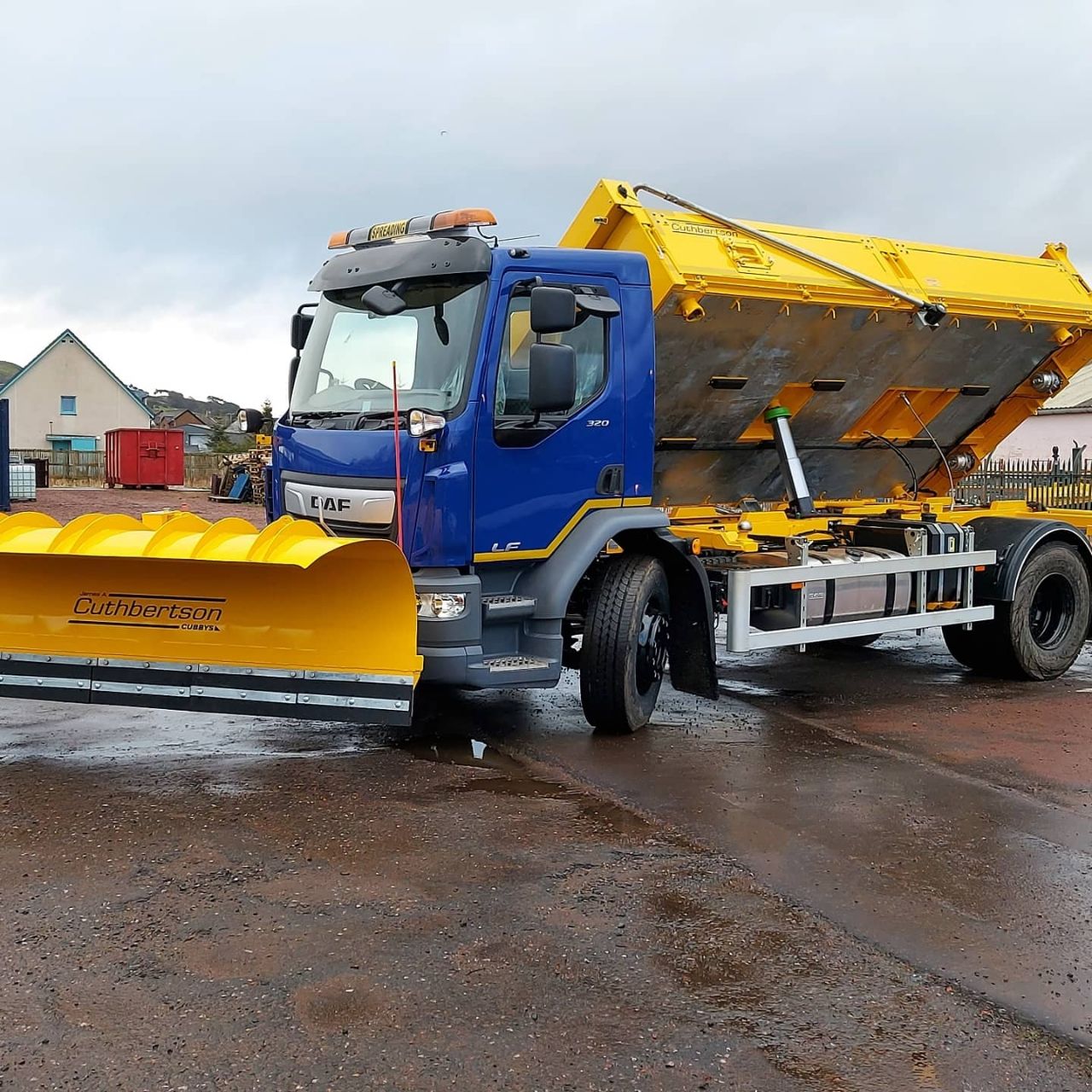

Typically used for highways work, 3 Way tipping gears offer exceptional operating versatility.
Closely paired together, the combination of body and tipping gear needs to be rugged, easy to use and reliable. That’s why HARSH 3 Way tipping rams have a simple, practical design that combines low weight with high performance.
High controllability and smooth, jerk-free operation make precision tipping both safe and easy, speeding up the job and maximising vehicle productivity.
HARSH 3 Way tipping rams use a ‘ball and socket’ body mounting as standard, coupled with our compact underfloor cylinders fixed in a bespoke cradle. The range covers 3.5t to 32t gvw chassis models, giving great flexibility on truck specification options.
